What if the samples you spent months collecting lost their quality in days? In many labs, this happens more often than you think. Even slight changes in temperature or humidity can destroy irreplaceable materials.
A laboratory freeze dryer offers a proven solution. It removes water from samples through sublimation, preserving their physical structure and chemical composition. This method keeps sensitive materials stable for months or even years without chemical preservatives.
In this post, you’ll learn what a freeze dryer for laboratory use is, why it’s vital for research accuracy, and how it protects sample integrity over time. We’ll also cover essential features, selection tips, and best practices for using your freeze dryer effectively.
A laboratory freeze dryer works by turning frozen water in a sample directly into vapor. This change, called sublimation, happens under low pressure. The sample stays frozen while water escapes as vapor, leaving the structure intact.
In conventional drying, heat is applied to evaporate water. This can damage delicate materials and alter chemical properties. Freeze drying avoids that by keeping temperatures low, protecting heat-sensitive compounds during the process.
| Method | Process Temperature | Water Removal Method | Impact on Sample |
|---|---|---|---|
| Freeze Drying | Low (below freezing) | Sublimation | Preserves structure & chemistry |
| Conventional Drying | Higher heat levels | Evaporation | Risk of degradation & shrinkage |
Using a freeze dryer for laboratory samples preserves both structure and chemical makeup. Proteins, enzymes, and other sensitive compounds stay stable. It’s ideal for situations where even small changes can ruin research results.
It also extends the shelf life of samples without adding preservatives. This is critical for studies needing long-term storage or repeated testing.
Researchers in biology, pharmaceuticals, and material science rely on this technology. They use it to store bacteria, stabilize vaccines, or prepare porous materials for analysis. It offers versatility while protecting the integrity of valuable samples.
A laboratory freeze dryer uses a powerful vacuum to speed up sublimation. By lowering pressure, ice turns directly into vapor without passing through a liquid phase. This protects delicate samples from structural damage.
The cold trap, or condenser, captures the water vapor before it reaches the vacuum pump. For efficiency, its temperature often drops below −50°C. A colder trap collects vapor faster, preventing moisture from returning to the sample.
| Component | Function | Impact on Drying Efficiency |
|---|---|---|
| Vacuum Pump | Reduces chamber pressure | Speeds sublimation |
| Cold Trap | Freezes and traps vapor | Prevents rehydration |
Shelves in a freeze dryer for laboratory applications are more than storage surfaces. They transfer heat evenly, helping ice sublimate at the same rate throughout the sample. Uneven heat can cause collapse or inconsistent dryness.
Adjustable shelves allow different container sizes or multiple layers of samples. This flexibility helps maximize chamber space without compromising temperature uniformity.
Modern systems use LCD or PLC displays to monitor temperature and pressure in real time. This makes it easy to spot any issues during the drying cycle.
Programmable settings let researchers tailor drying cycles to specific materials. Whether it’s a delicate biological sample or a dense chemical compound, the right program ensures optimal preservation without manual guesswork.

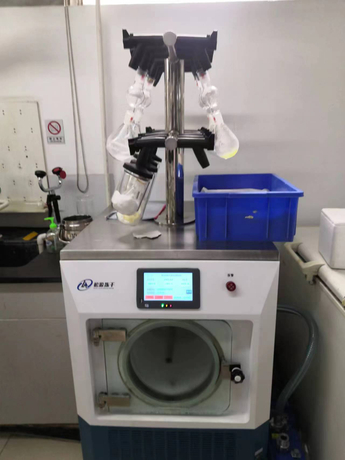

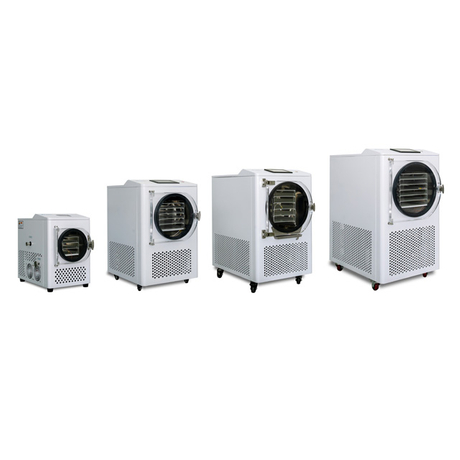

A benchtop laboratory freeze dryer is compact and portable, making it ideal for small sample volumes. Researchers often place it on a workbench for easy access during daily tasks. It handles small containers, vials, or flasks, allowing rapid drying without needing a large-scale setup.
These units excel in quick batch processing for teaching labs or specialized studies. However, limited chamber space means they are not suited for high-volume production. Smaller condensers also restrict the amount of moisture they can capture before defrosting becomes necessary.

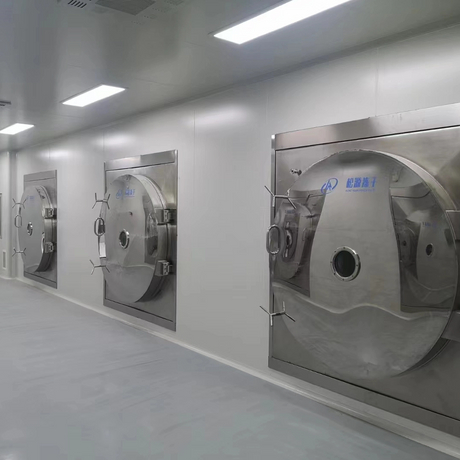

An intermediate-scale freeze dryer for laboratory applications bridges the gap between benchtop units and large production systems. These models are often used in pilot studies or pre-production testing. They provide enough capacity for scaling up experiments while maintaining precise control over drying conditions.
They frequently use cascade refrigeration to reach lower condenser temperatures—sometimes as low as −80°C. This allows efficient processing of samples containing solvents with low freezing points. More shelf space and higher vacuum pump capacity also make them suitable for handling multiple sample types at once without compromising quality.
Selecting a laboratory freeze dryer starts with knowing the type of samples. Biological materials need low-temperature drying to protect proteins, while certain chemicals require precise vacuum control. Food or pharmaceutical samples may have different moisture content, affecting the condenser’s performance requirements.
The condenser temperature and capacity matter because they determine how quickly and completely moisture is removed. For solvent-heavy samples, a colder condenser ensures vapor is trapped before reaching the pump.
Chamber size and shelf area decide how many samples can be processed at once. A larger shelf space works for bulk drying, but smaller chambers are more energy-efficient for limited loads.
Vacuum pump type and performance affect both drying speed and final dryness. A pump that maintains stable low pressure helps avoid melt-back and protects the structure of sensitive samples.
| Selection Factor | Why It Matters |
|---|---|
| Sample Type | Dictates temperature & vacuum needs |
| Condenser Temperature | Controls moisture capture efficiency |
| Chamber/Shelf Size | Impacts load capacity & efficiency |
| Vacuum Pump Performance | Ensures drying quality & speed |
When choosing a freeze dryer for laboratory use, balancing cost and performance is crucial. A high-end system may offer advanced automation, but if the workload is small, the extra expense may not be justified.
Over-specifying features can waste resources. For example, investing in extreme low-temperature capability is unnecessary if samples are stable at higher freeze-drying temperatures. Maintenance costs should also be factored in, as complex systems can be more expensive to service over time.
A laboratory freeze dryer works best when samples are already frozen. Pre-freezing locks in the sample’s structure, preventing melt-back during primary drying. Without this step, ice may partially melt, damaging delicate cellular or chemical structures. Lowering the temperature below the eutectic or critical point ensures sublimation starts correctly.
A freeze dryer for laboratory use needs proper loading to maintain efficiency. Shelves should never be overcrowded, as this restricts airflow and slows drying. Samples must be spaced so cold surfaces and heat transfer reach each container evenly. Uneven placement can lead to pockets of moisture remaining in some samples while others are fully dry.
| Loading Tip | Benefit |
|---|---|
| Avoid overcrowding shelves | Promotes airflow and consistent drying |
| Equal spacing of samples | Maintains temperature uniformity |
Consistent monitoring helps prevent errors that can ruin weeks of work. Watching pressure and temperature trends during the cycle ensures conditions stay within the optimal range. A drop in pressure combined with a stable temperature often indicates water removal is nearly complete.
Many systems use built-in sensors to detect the end-point dryness. This reduces guesswork and ensures that every batch leaves the laboratory freeze dryer with the correct residual moisture content, ready for storage or further analysis.
Keeping a laboratory freeze dryer clean helps prevent contamination between batches. Residual particles or biological matter can affect new samples. After each run, shelves and chamber walls should be wiped with a suitable cleaning solution. This avoids cross-contamination and keeps the system performing efficiently. Regular cleaning also prevents buildup that could interfere with heat transfer or vacuum performance.
The vacuum pump is essential for a freeze dryer for laboratory use, and it needs attention to stay reliable. Changing the pump oil at recommended intervals keeps it free from moisture and debris. Running the gas ballast periodically helps remove any condensed vapors inside the pump. A well-maintained pump reaches lower pressures faster and supports stable sublimation conditions.
Over time, the cold trap collects thick ice layers that can reduce its efficiency. Defrosting between cycles ensures maximum surface area is available for vapor capture. Ice buildup makes the system work harder, increasing energy use and slowing the drying process. A quick defrost after each batch keeps the laboratory freeze dryer ready for the next run and maintains optimal performance.
A laboratory freeze dryer is essential in developing stable pharmaceutical formulations. It allows removal of water from sensitive compounds without degrading their chemical structure. This process is critical for vaccines, injectable drugs, and biologics that require long shelf life and consistent potency. The precise control over drying conditions ensures each batch meets quality and safety standards for clinical or research use.
Preserving biological molecules such as DNA, RNA, and proteins requires low-temperature dehydration to prevent breakdown. A freeze dryer for laboratory applications achieves this by creating a stable, moisture-free environment. The method maintains molecular integrity, enabling accurate genetic analysis and repeat testing months or even years later.
| Sample Type | Benefit of Freeze Drying |
|---|---|
| DNA/RNA | Maintains sequence integrity |
| Proteins | Preserves structure and activity |
Plant tissues and microbial cultures benefit greatly from freeze drying. By removing moisture without high heat, cell structures remain intact, making rehydration possible without significant loss of viability. This is valuable for botanical research, microbial taxonomy, and long-term storage of experimental strains.
In material science, a laboratory freeze dryer is used to create and study porous materials. By controlling sublimation, researchers can manipulate pore size and structure in ceramics, polymers, and composites. These dried materials often serve in filtration systems, catalysts, or as scaffolds in biomedical engineering studies.
A laboratory freeze dryer needs tight seals and a dry pump to pull deep vacuum. Check door gaskets, valves, and hose joints for leaks. Listen for hiss. Spray a mild leak detector if needed.
Confirm the cold trap is colder than the sample’s vapor pressure. If not, vapor overloads the pump. Defrost the trap and restart.
Pump oil contaminated by water raises pressure. Change the oil. Run the gas ballast to clear vapors. Verify the Pirani and capacitance gauges read consistently after calibration.
Collapse often means the product exceeded its safe temperature. Lower shelf temperature or reduce chamber pressure. Ramp slowly.
Pre-freeze below the eutectic temperature or the glass transition. It prevents partial melting during primary drying. Anneal if ice crystals are too small.
If a freeze dryer for laboratory shows sudden temperature spikes, reduce heat input. Extend primary drying time. Protect proteins, enzymes, and fragile matrices.
Uneven loading causes hot and cold spots. Space containers evenly. Avoid tall stacks that block vapor flow.
Edge vials dry faster due to radiation from walls and door. Use dummy vials at edges to even heat distribution. Rotate positions between runs if allowed.
Map shelf temperatures before critical batches. Fix sensors if they drift. Keep shelves clean so heat transfer stays uniform.
| Issue | Likely Cause | Quick Fix |
|---|---|---|
| Can’t reach set vacuum | Leaks, wet pump oil, warm trap | Seal leaks, change oil, defrost and cool trap |
| Collapse or melt-back | Overheating, pressure too high | Lower shelf temp, drop pressure, slower ramp |
| Uneven drying across shelves | Overcrowding, edge effects | Even spacing, dummy vials, shelf mapping |
A laboratory freeze dryer helps protect delicate samples, ensuring they remain stable and reliable for research. It preserves structure, chemistry, and overall quality without harmful additives.
Choosing the right model depends on sample type, drying requirements, and workload. Matching features to needs avoids unnecessary costs and boosts efficiency.
Following best practices, from pre-freezing to regular maintenance, keeps a freeze dryer for laboratory running at peak performance. This extends its life and safeguards valuable research results.
A: A laboratory freeze dryer removes water from frozen samples through sublimation under low pressure. This process avoids heat damage, preserving structural and chemical integrity. It’s ideal for biological, pharmaceutical, and material science research where sample stability is critical.
A: Unlike conventional drying, a freeze dryer for laboratory use prevents shrinkage, denaturation, and chemical changes. It keeps sensitive compounds intact while extending shelf life without preservatives, making it suitable for high-value research materials.
A: Pre-freeze samples to avoid melt-back, load them evenly for consistent drying, and monitor temperature and pressure trends. Regular cleaning, vacuum pump maintenance, and cold trap defrosting help keep a laboratory freeze dryer operating efficiently for years.
