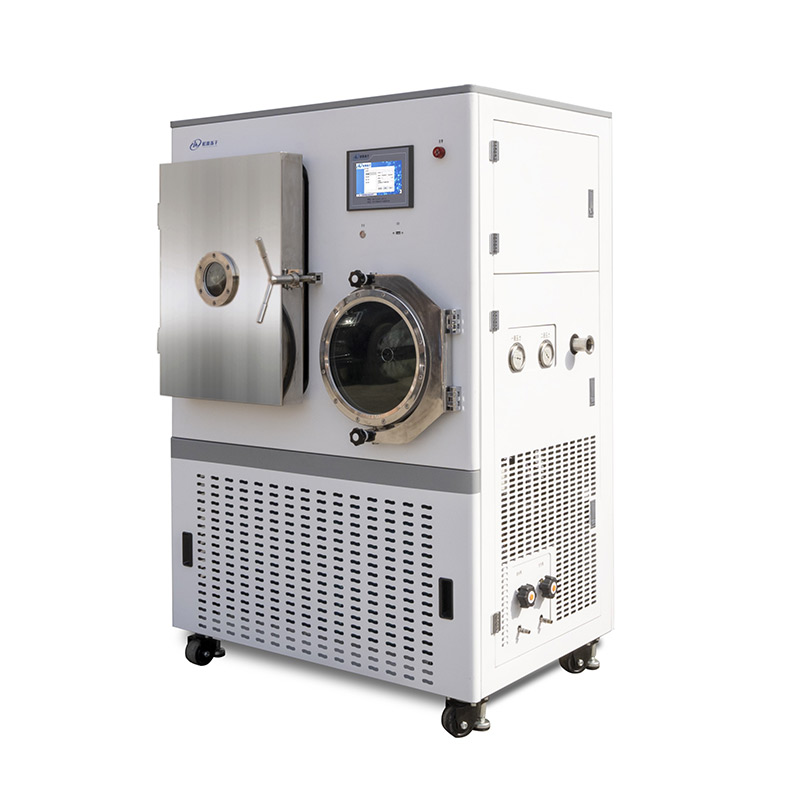

In lyophilization workflows, the freeze dryer dictates the core process parameters. However, the vacuum pump acts as the silent guardian securing the entire environment. When you rely on a mismatched or underperforming pump, you face severe consequences. These issues often lead to collapsed batches, extended drying cycles, and contaminated samples. Selecting the right component means finding one capable of reliably reaching the required sublimation pressure of less than 100 mTorr. You must also ensure the equipment aligns perfectly with your team’s maintenance capacity and your facility's infrastructure. This guide breaks down the essential technical specifications and pump technologies available today. You will learn how to evaluate and specify the ideal vacuum pump for freeze drying. We will cover key sizing metrics, operational mechanisms, and physical integration factors to guarantee successful, repeatable lyophilization cycles.
Vacuum Level is Non-Negotiable: A freeze dryer vacuum pump must consistently achieve an ultimate vacuum of at least 1x10⁻³ mbar to facilitate efficient sublimation.
Oil vs. Oil-Free: Oil-sealed rotary vane pumps offer deep vacuum at a lower upfront cost but require rigorous maintenance; dry scroll pumps eliminate oil changes but carry a higher initial capital expense.
Sizing Matters: Pumping speed (CFM or L/min) must match the chamber volume and vapor load. Oversizing wastes capital; undersizing risks pump failure and batch loss.
TCO Drives the Decision: Long-term vacuum pump selection should weigh upfront costs against consumable expenses (vacuum oil, filters) and downtime risks.
Many operators misunderstand how vacuum drives the lyophilization process. The vacuum pump does not act like a household vacuum cleaner. It does not physically suck water out of your frozen product. Instead, it lowers the atmospheric pressure inside the chamber. It drops this pressure significantly below the triple point of water. At standard conditions, the triple point occurs at 0.01°C and 6.11 mbar. By lowering the chamber pressure below this threshold, you alter the physical state boundaries of water. This precise environment allows frozen ice within your samples to transition directly into vapor. It completely bypasses the liquid phase. Without this deep vacuum environment, primary drying becomes impossible, and the frozen structure collapses.
A successful freeze drying cycle requires a strict division of labor between two distinct components. You have the cold trap, often called the condenser, and you have the vacuum pump. The cold trap catches and freezes the massive volume of moisture leaving the product. It handles the condensable vapors. The vacuum pump performs a completely different job. It focuses entirely on removing non-condensable gases from the chamber. These include atmospheric nitrogen, oxygen, and minor system leaks. If you force the pump to handle the moisture load, you will experience catastrophic equipment failure. The condenser must protect the pump at all times.
Standard pumps suffer severe damage when exposed to excessive water vapor. Aggressive laboratory solvents pose an even greater threat. If you operate without protective measures, performance degrades rapidly. Water vapor condenses inside the compression chamber. This water mixes directly into the lubricating oil. The resulting emulsion destroys the oil's ability to seal and lubricate. Internal components will rust. Friction increases, and the motor eventually seizes. You must employ operational techniques like gas ballasting to protect the internal mechanisms. Proper application knowledge prevents costly downtime and protects your capital investment.
Selecting the right technology for your freeze drying equipment defines your overall process reliability. Different lab environments require distinct technological approaches to achieve optimal results.
Mechanism & Strengths: These units serve as the undisputed industry standard for achieving deep vacuum conditions. They utilize a spinning rotor equipped with sliding vanes. The entire mechanism sits submerged in a bath of specialized hydrocarbon oil. This oil provides critical lubrication. It also seals the microscopic gaps between the vanes and the stator block. This fluid seal allows the pump to reach extraordinary ultimate pressure capabilities. You will also find they require a relatively low initial purchase price compared to modern dry technologies.
Implementation Realities: They remain highly susceptible to oil contamination. Moisture or harsh solvents from your samples can quickly degrade the hydrocarbon fluid. You must perform frequent, highly disciplined oil changes. We recommend checking the oil sight glass daily. If the fluid looks cloudy or milky, water has breached the system. You must drain and replace the oil immediately. Failure to do so causes emulsion, internal corrosion, and a sudden loss of vacuum depth.
Best For: They work perfectly for facilities enforcing strict daily maintenance protocols. Commercial food processing operations heavily rely on them. Budget-conscious research labs also favor this technology for standard aqueous freeze drying.
Mechanism & Strengths: This modern design uses two interlocking Archimedean spirals to compress and move gas. One scroll remains fixed while the other orbits eccentrically. They operate completely oil-free. This entirely eliminates oil misting issues in your laboratory atmosphere. It also removes the severe risk of batch contamination caused by oil vapor backstreaming into the clean drying chamber. You never have to buy, store, or dispose of hazardous waste oil.
Implementation Realities: They command a significantly higher initial acquisition cost. Daily maintenance remains beautifully minimal, which saves massive amounts of technician time. However, the mechanical design relies on PTFE composite tip seals to separate the compression pockets. These seals wear down gradually over time. You must schedule periodic tip seal replacements. This service requirement typically occurs every 8,000 to 10,000 operational hours. The replacement process requires specialized tools and technical patience.
Best For: We strongly recommend them for cleanrooms and active pharmaceutical ingredient (API) processing. They suit any facility looking to reduce ongoing maintenance labor and eliminate environmental hazards.
Mechanism & Strengths: Advanced chemical applications require specialized equipment. Hybrid units often combine rotary vane and diaphragm technologies into a single footprint. The diaphragm section maintains the oil reservoir under a constant negative pressure. This intelligent design prevents aggressive solvents from condensing inside the oil bath. Other designs utilize solid PTFE (Teflon) coated internals to resist aggressive chemical attack. They handle harsh substances like trifluoroacetic acid (TFA) or acetonitrile effortlessly.
Implementation Realities: These units represent a highly specialized and expensive category. A standard off-the-shelf pump will fail rapidly if you use it for aggressive solvent applications. The internal springs will dissolve, and the seals will swell and crack. You must invest in these protected designs if your workflow involves complex chemistry.
Best For: Research laboratories and specialized chemical synthesis applications use them extensively. They fit perfectly into workflows where corrosive off-gassing represents a daily expectation.
Table: Comparison of Primary Vacuum Pump Technologies
Technology Type | Ultimate Vacuum Depth | Maintenance Intensity | Chemical Resistance | Primary Advantage |
|---|---|---|---|---|
Oil-Sealed Rotary Vane | Excellent (< 1x10⁻³ mbar) | High (Frequent oil changes) | Low to Moderate | Deepest vacuum at lowest initial price |
Dry Scroll Pump | Very Good (~ 1x10⁻² mbar) | Low (Annual tip seal swaps) | Moderate | Zero oil contamination or misting |
Hybrid / Chemistry Pump | Excellent (< 2x10⁻³ mbar) | Moderate | Outstanding | Handles highly aggressive lab solvents |
Effective vacuum pump selection relies entirely on precise mathematical matching. You cannot guess the required specifications. You must align the pump's capabilities with your chamber geometry and process parameters.
Baseline Requirements: Successful freeze drying generally requires an operating pressure resting between 0.01 and 0.1 mbar. In different units, this translates to roughly 7.5 to 75 mTorr. You need this stable, deep environment to drive sublimation efficiently across the entire product cake.
Buffer Margin: You should never buy a pump that just barely meets your target pressure. The pump's rated ultimate vacuum should sit at least one full decade lower than your required operating pressure. For instance, you should aim for an ultimate vacuum rating of 1x10⁻³ mbar. This essential buffer accounts for minor system leaks, outgassing from O-rings, and general mechanical aging over time.
Volume Matching: The pump’s volumetric flow rate typically appears in CFM (Cubic Feet per Minute) or L/min (Liters per Minute). It must remain directly proportional to your manifold or chamber size. Proper matching ensures acceptable pump-down times before the sublimation phase begins. A standard rule of thumb suggests sizing the flow rate to evacuate the chamber volume in under ten minutes.
Avoiding Over-specification: Many buyers mistakenly believe a larger pump always performs better. This assumption proves dangerous. A significantly oversized pump creates excessively high-velocity gas flows. These turbulent currents might pull loose ice crystals directly into the pump mechanism. Worse, sudden pressure drops can cause oil vapor to backstream violently into your clean product chamber. Always size the unit correctly, neither too small nor too large.
Moisture Handling: A gas ballast serves a critical role in daily moisture management. It operates as a controlled leak. When you open the ballast valve, it introduces a very small amount of ambient air directly into the compression cycle. This action raises the partial pressure inside the pump block. It prevents evaporated water vapor from condensing back into liquid droplets before exiting the exhaust port.
Trade-off: Operating with the gas ballast open slightly degrades your ultimate vacuum level. The influx of air forces the pump to work harder. You must select a unit robust enough to overcome this differential pressure drop while the ballast remains active.
When integrating a new unit into an existing vacuum system, physical and operational synergy matters most. You must verify every connection point before purchasing.
Address the physical integration parameters carefully. Always check your flange sizes first. Standard laboratory sizes often include NW16, NW25, or KF25 fittings. You must purchase the correct centering rings and quick-release clamps to match. You must also verify vacuum hose compatibility. A hose diameter that is too narrow will choke the pumping speed, rendering a powerful pump useless. Additionally, confirm all electrical requirements. Ensure the supplied voltage matches your facility, and verify regional plug configurations.
Proper exhaust routing protects your laboratory environment and personnel. Oil-sealed rotary vane units generate visible mist during the initial high-pressure evacuation phase. This mist contains microscopic, hazardous oil droplets. You must install a dedicated oil mist exhaust filter to capture these particles. If you process hazardous solvents, you must route the filtered exhaust directly into a certified fume hood. Dry scroll pumps simplify exhaust management significantly because they emit zero oil vapor. However, they still exhaust the chemical gases they pump. You must vent these process gases safely away from human operators.
Follow a structured decision matrix to finalize your equipment choice. Skipping steps often leads to mismatched hardware and compromised batches.
Step 1: Define the Application: Determine your primary product type first. Are you processing standard aqueous food products that generate a predictable water vapor load? Or are you handling complex lab solvents that demand strict chemical resistance? Your application dictates the required pump technology immediately.
Step 2: Assess Maintenance Culture: Evaluate your team objectively. If your operation lacks personnel dedicated to daily equipment checks and fluid maintenance, reconsider your options. You should pivot away from oil-sealed units toward dry scroll technology to prevent preventable breakdowns.
Step 3: Verify Compatibility: Compare specifications carefully. Ensure the selected pump's flow rate and vacuum depth align precisely with the freeze dryer manufacturer's minimum stated specifications. Do not guess these values.
Step 4: Request Documentation: Never buy industrial equipment blindly. Secure detailed performance curves, official maintenance schedules, and warranty terms from the manufacturer. Do this long before finalizing any purchase order.
Finding the ideal freeze dryer vacuum pump requires a careful, calculated balance. You must weigh the required ultimate vacuum depth against practical moisture handling capabilities. Realistic maintenance expectations also play a massive role in long-term operational success. We encourage buyers to look far past the initial sticker price. Evaluate the pump as a critical, hard-working asset in your daily lyophilization workflow. A reliable pump protects your valuable product, saves countless hours of processing time, and prevents disastrous batch failures. Focus heavily on operational compatibility and physical integration. Prioritize adequate volumetric sizing to ensure your system runs smoothly and safely for years to come.
A: Yes, you can usually integrate a third-party pump. However, you must ensure strict physical and operational compatibility. Verify that the flange fittings and hose diameters perfectly match your chamber ports. Always check if using an aftermarket pump voids your specific manufacturer's warranty. Finally, ensure the electrical voltage and current draw match your regional power supply before making any connection.
A: Maintenance frequency depends entirely on your usage frequency and vapor load. For standard use, you might change it every few weeks. You should perform a brief visual inspection before every single batch. If the oil appears cloudy or milky, moisture has contaminated it. You must perform an immediate fluid replacement to prevent internal rust and corrosion.
A: What appears as smoke is actually atomized oil mist. This happens routinely during high-pressure pump-down phases when the air volume moving through the unit is high. It represents normal operation, not a mechanical failure. To manage this issue properly, you must install an exhaust mist filter on the pump outlet. This component captures the mist and keeps your laboratory air safe and clean.
A: A standard diaphragm pump rarely reaches the deep vacuum levels needed for primary sublimation drying. They prove highly chemically resistant and perform exceptionally well for roughing applications. However, their ultimate pressure limits usually render them inadequate as standalone solutions. They often serve perfectly as robust backing pumps in complex, multi-stage vacuum systems rather than primary freeze drying units.
