Transitioning peptides from Reverse-Phase High-Performance Liquid Chromatography (RP-HPLC) purification to stable, lyophilized powders presents a notorious bottleneck for laboratories and production facilities alike. Eluates routinely emerge laden in aggressive solvents like acetonitrile (ACN) and trifluoroacetic acid (TFA). These mixtures complicate the immediate drying process and threaten both product viability and hardware integrity.
Improper solvent management carries steep operational penalties. You risk ruining high-value peptide batches, suffering severe vacuum pump damage, and dealing with catastrophic cake collapse. Standard freeze drying equipment simply cannot process high volumes of acidic or volatile off-gassing without suffering rapid degradation.
Successfully navigating this transition requires a disciplined, two-pronged approach. First, you must implement rigorous feed preparation strategies to reduce solvent loads. Second, you must select a robust system engineered for chemical resistance. We will explore the exact hardware specifications, preparation protocols, and compliance steps needed to safeguard your product and scale your operations successfully.
Directly freezing high-concentration Acetonitrile (ACN) or Trifluoroacetic acid (TFA) mixtures leads to eutectic melting and equipment failure; feed preparation is non-negotiable.
A specialized peptide freeze dryer requires specific hardware configurations, including ultra-low temperature condensers (≤ -85°C) and corrosion-resistant components, to handle volatile off-gassing.
Transitioning from lab-scale protocols to a GMP freeze dryer demands strict data logging, recipe validation, and scalable thermal control mechanisms.
Evaluating equipment based on solvent compatibility reduces long-term maintenance costs and ensures higher peptide recovery rates.
Most standard lyophilizers handle aqueous solutions efficiently. They rely on the straightforward sublimation of water ice into vapor under a deep vacuum. However, the business reality of peptide production introduces a complex variable: RP-HPLC eluates typically contain high percentages of water mixed alongside ACN and harsh buffers like TFA or Formic Acid. Processing these eluates through a standard unit creates immediate physical and mechanical bottlenecks.
Acetonitrile drastically alters the thermal dynamics of your product mixture. It depresses the freezing point and creates low-temperature eutectic mixtures. These mixtures resist complete solidification at standard pre-freezing temperatures, often remaining partially liquid even at -40°C. If you apply a deep vacuum to a mixture containing unfrozen ACN, the liquid solvent will boil vigorously rather than sublimate. This boiling destroys the structure of your peptide cake, leading to material loss and erratic drying cycles.
Standard cold traps usually operate around -50°C to -85°C, which perfectly captures water vapor. However, volatile solvents like ACN possess much lower freezing points under vacuum conditions. They easily bypass standard condensers in vapor form. Once these solvents bypass the cold trap, they migrate directly into the vacuum pump. In a traditional rotary vane pump, ACN strips the lubricating oil, reduces vacuum efficiency, and ultimately causes catastrophic pump failure. You must trap these vapors before they reach your mechanical pumps.
Beyond volatility, you must account for extreme corrosiveness. Trifluoroacetic acid is highly aggressive toward traditional manufacturing materials. Repeated exposure to TFA off-gassing rapidly pits standard 304 stainless steel chambers. It also degrades standard rubber gaskets and vacuum seals, leading to micro-leaks. When considering a pharmaceutical lyophilizer for peptide workflows, you must verify the chamber materials and seal compositions can withstand prolonged acidic exposure.
Because aggressive solvents pose such high risks to your final product and equipment, proper feed preparation becomes mandatory. You cannot simply load raw HPLC fractions directly into the drying chamber. We recommend a structured series of preparation steps to optimize your liquid feed for sublimation.
Reducing your initial solvent load stands as the most vital preparatory step. Your goal is to drop the ACN concentration below 10% to 15% before initiating the freezing process. By removing the bulk of the volatile solvent, you raise the collapse temperature of your mixture. This adjustment allows you to use standard primary drying temperatures without risking product meltback.
Many process engineers mistakenly view evaporation and lyophilization as competing technologies. For RP-HPLC fractions, they operate as a necessary sequence. Rotary evaporation or centrifugal concentration serves as a mandatory predecessor to freeze drying. You should use vacuum evaporation to flash off the bulk of the ACN quickly. Once you achieve a mostly aqueous solution containing the concentrated peptide, you then transfer the material to the lyophilizer for final, gentle moisture removal.
TFA salts present long-term stability challenges for many pharmaceutical peptides. They also contribute to the acidic degradation of your equipment. We highly recommend performing a solvent exchange to swap aggressive TFA salts for more stable alternatives. Converting your product to acetate or hydrochloride salts dramatically improves the final stability of the lyophilized cake. It also limits the amount of corrosive vapor hitting your condenser, thereby extending the lifespan of your machinery.
How you freeze your concentrated feed dictates the success of your primary drying phase. Controlling ice crystal size is crucial to preventing macro-collapse.
Rapid Freezing: Submerging vials in liquid nitrogen or using ultra-low freezers creates very small ice crystals. This method maximizes the surface area but often creates high resistance to vapor flow during sublimation.
Thermal Annealing: You can optimize the cake structure by fluctuating the temperature. After initial freezing, raise the shelf temperature slightly above the glass transition temperature, hold it, and freeze it again. This process encourages Ostwald ripening, where small ice crystals merge into larger ones, creating wider pores for faster vapor escape.
Best Practice: Always perform thermal analysis, such as Differential Scanning Calorimetry (DSC), on your specific peptide mixture to identify precise glass transition and eutectic melting points before designing your freezing protocol.
When shortlisting equipment, mapping technical requirements directly to your production reliability is crucial. A purpose-built peptide freeze dryer requires distinct internal engineering to survive daily exposure to aggressive solvent profiles.
The chart below outlines how specialized hardware capabilities directly influence your manufacturing outcomes.
Component | Standard Configuration | Specialized Configuration | Production Outcome |
|---|---|---|---|
Condenser System | -50°C to -85°C (Single Stage) | -85°C to -105°C (Cascade System) | Traps volatile ACN effectively, preventing solvent migration to the vacuum pump. |
Chamber Material | 304 Stainless Steel | 316L Stainless Steel with PTFE Coating | Prevents pitting and rust from TFA exposure, ensuring long-term structural integrity. |
Vacuum Pump | Rotary Vane (Oil-Sealed) | Chemical-Resistant Scroll Pump (Dry) | Eliminates oil contamination risks and survives acid vapor pass-through without failure. |
Seals & Gaskets | Standard Buna-N / Nitrile | Viton or Kalrez Elastomers | Maintains tight vacuum integrity despite continuous exposure to harsh solvent fumes. |
To safely capture solvents like ACN, you need substantial thermal trapping power. A standard -50°C condenser will not suffice. You must specify a cascade refrigeration system capable of pulling temperatures down to between -85°C and -105°C. These ultra-low temperatures freeze the volatile solvents onto the condenser coils before they can exit the chamber system.
You must scrutinize the wetted materials inside the equipment. Ensure the manufacturer uses 316L stainless steel for the chamber and shelves, as it offers superior resistance to chloride and acid pitting compared to standard alloys. Additionally, request PTFE-coated components and specialized manifold materials. Upgrading your O-rings and door gaskets to high-grade chemical elastomers prevents vapor leaks and maintains deep vacuum levels.
Your vacuum pump acts as the heart of the system. Traditional oil-sealed rotary vane pumps fail rapidly when exposed to ACN and TFA. We recommend evaluating chemical-resistant scroll pumps, also known as dry pumps. Because they do not use oil for sealing, solvent vapors pass through them without degrading any lubrication. Alternatively, if you must use an oil-sealed pump, ensure the inclusion of a liquid nitrogen secondary cold trap or an inline chemical trap to intercept aggressive vapors.
Transitioning from a research laboratory to commercial production fundamentally changes your equipment requirements. As batch sizes grow, the margin for error shrinks. You must shift from simple manifold-based drying toward highly controlled shelf-based systems.

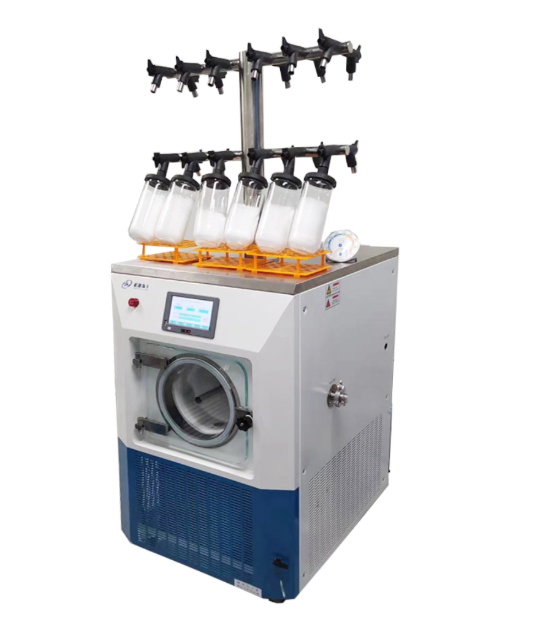

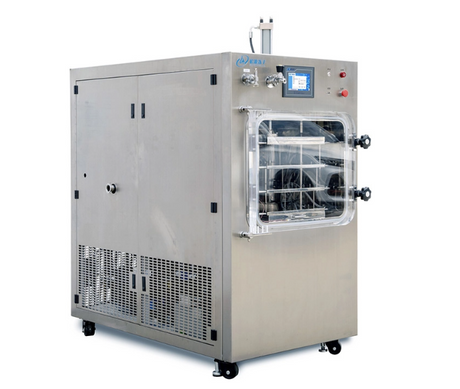

In a lab environment, users frequently attach round-bottom flasks to exterior manifolds. While efficient for small, discrete samples, this method offers poor thermal control and zero scalability. Commercial operations require shelf-based drying for bulk trays or thousands of individual vials. This transition ensures uniform drying kinetics across the entire batch, allowing you to validate a consistent, repeatable recipe.
Precise shelf temperature control becomes critical at scale. You must avoid hot spots or cold spots within the drying chamber, as these cause batch inconsistencies. Look for fluid-circulated shelves equipped with internal serpentine channels. Silicone oil circulating through these channels guarantees precise temperature uniformity across every square inch of the shelf surface, ensuring every vial experiences identical sublimation conditions.

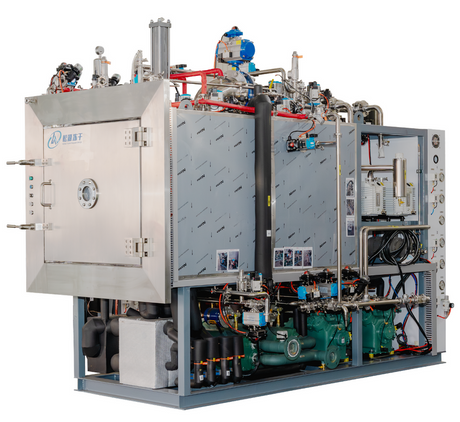

Regulatory bodies demand strict oversight for injectable therapeutics. What differentiates a standard unit from a specialized GMP freeze dryer lies in its traceability and sanitation capabilities. You must verify that the control software is fully 21 CFR Part 11 compliant. This compliance mandates secure user logins, encrypted electronic signatures, and immutable audit trails. Furthermore, clinical-scale production requires automated Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems to prevent cross-contamination between high-value batches.
When selecting a biopharmaceutical freeze dryer, buyer due diligence is paramount. Do not accept standard water-based tests during the Factory Acceptance Testing (FAT) phase. You must require the manufacturer to run FAT scenarios that specifically simulate your aggressive solvent loads. Testing the machine with actual ACN and TFA proxies proves that the condenser, seals, and vacuum pumps will perform safely under real-world production stresses.
Even with excellent equipment, process deviations occur. Recognizing the early warning signs of lyophilization failure allows you to rescue batches before they degrade completely.
Meltback and Cake Collapse:
Root Cause: This failure usually stems from residual ACN left in the mixture, which lowers the collapse temperature. It can also occur if you push the primary drying shelf temperature too high too quickly.
Solution: Optimize your thermal recipes. Ensure you conduct proper feed preparation to evaporate excess ACN beforehand. Keep shelf temperatures strictly below the critical formulation collapse temperature during primary drying.
"Bumping" or Eruption:
Root Cause: When you apply a deep vacuum, any unfrozen solvent pockets hidden within the matrix will violently boil. This eruption blows the peptide out of the vial.
Solution: Implement step-wise vacuum control. Ramp down the pressure slowly. More importantly, ensure you freeze the product completely below its specific glass transition temperature ($Tg'$) prior to initiating the vacuum.
Vacuum Degradation:
Root Cause: Saturated pump oil causes the system to lose its deep vacuum capability. The pump struggles to pull pressure down to required sublimation levels, prolonging the cycle indefinitely.
Solution: Enforce strict, routine maintenance schedules. Utilize hybrid pump systems, install dry scroll pumps, and monitor your secondary chemical solvent traps meticulously between every batch.
Successful peptide isolation relies on a critical synergy. You must actively remove excess HPLC solvents during feed preparation and utilize robust, chemically resistant lyophilization hardware. Relying on standard aqueous-rated machinery for aggressive chemical mixtures will result in compromised products and ruined equipment.
Before finalizing your next vendor, recommend a cross-functional evaluation. Bring your analytical chemists to define the exact protocol limits and solvent ratios. Bring your process engineers to scrutinize the equipment RFQs and validate condenser specifications. Always request solvent-specific case studies from the manufacturer to prove their systems handle high-concentration ACN and TFA in real-world scenarios. Taking these steps ensures high recovery rates and shields your facility from unexpected downtime.
A: Keep it brief, typically <10% for standard units, though specialized units with ultra-low condensers can handle slightly higher if pre-frozen correctly, but concentration is always recommended.
A: Mention secondary chemical traps, dry vacuum pumps, and frequent oil changes if using rotary pumps.
A: Address the collapse temperature ($Tc$) being depressed by residual solvents, requiring a colder shelf temperature during primary drying or further pre-evaporation.
