Semaglutide API Manufacturing: Purification and Lyophilization

The global demand for GLP-1 receptor agonists has exposed critical bottlenecks in commercial-scale peptide production. We frequently observe market shortages, which heavily highlight an urgent need for scalable solutions. While solid-phase peptide synthesis (SPPS) or recombinant methods initiate production, the true challenge of the semaglutide manufacturing process lies in downstream processing. Manufacturers continuously struggle to achieve high-purity yields and long-term API stability without compromising their overall throughput. These highly concentrated liquid peptide solutions remain inherently unstable and intensely susceptible to rapid hydrolysis. Optimizing purification workflows and selecting the right lyophilization equipment are non-negotiable for pharmaceutical manufacturers. You must carefully scale your production volumes while maintaining stringent cGMP compliance and protecting profit margins. This comprehensive guide will show you how to navigate complex impurity profiles, evaluate scalable chromatography technologies, and implement robust freeze-drying strategies to secure your supply chain.

Key Takeaways

• Yield Preservation: Advanced preparative HPLC is standard for semaglutide purification, but solvent recovery and cycle times dictate commercial viability.

• Moisture & Stability: Semaglutide APIs are highly sensitive to thermal degradation; precise control over the sublimation phase in a pharmaceutical lyophilizer is required to prevent cake collapse.

• Compliance & Scale: Transitioning from pilot to commercial production requires a GMP freeze dryer with automated loading and integrated CIP/SIP systems to meet EU Annex 1 and FDA requirements.

• Vendor Evaluation: Equipment selection must prioritize FAT/SAT transparency, IQ/OQ/PQ documentation readiness, and long-term lifecycle support over initial CapEx.

The Bottleneck in the Semaglutide Manufacturing Process

The transition from upstream synthesis to downstream isolation introduces the highest risk of yield loss in peptide manufacturing. We consider this phase the ultimate bottleneck. Upstream synthesis might successfully yield a crude peptide sequence, but it often arrives at a purity level well below acceptable clinical limits. Business leaders must recognize this exact transition phase as the primary source of potential cost overruns. If you fail to optimize your isolation steps, you risk wasting incredibly expensive raw materials.

Impurity profiles further complicate isolation efforts. Semaglutide synthesis naturally generates complex related substances, including desamido forms and aggregation impurities. These variants are structurally nearly identical to the target API. Because they share similar molecular weights and polarities, they demand high-resolution separation techniques. You cannot rely on standard filtration. Removing these impurities without sacrificing the main product requires precision.

Liquid peptide solutions present another formidable stability challenge. They are highly prone to hydrolysis, deamidation, and physical aggregation when left in an aqueous state. You must execute rapid, controlled transitions to convert these vulnerable liquids into a stable, freeze-dried powder. This phase shift remains essential for ensuring reliable shelf-life and global transportability. Delayed processing directly causes degradation.

To overcome these hurdles, teams need clear operational targets. A viable commercial process must achieve several strict success criteria:

1. Deliver greater than 99% API purity consistently across every single run.

2. Minimize overall cycle times to support high-volume market demands.

3. Eliminate batch-to-batch variability through strict parameter control.

4. Maintain structural integrity of the peptide during buffer exchange.

Evaluating Purification Strategies for Peptide APIs

Manufacturers must carefully evaluate their solution categories to guarantee optimal separation. Preparative High-Performance Liquid Chromatography (Prep-HPLC) remains the gold standard for achieving clinical-grade purity. However, emerging continuous chromatography solutions now offer compelling alternatives. We see many facilities comparing these approaches to determine which system best fits their scaling requirements. Multi-column continuous setups often improve throughput, but traditional single-column Prep-HPLC provides unmatched, proven regulatory familiarity.

Chart: Prep-HPLC vs. Continuous Chromatography

You must balance resolution against throughput when configuring your setup. Teams typically select C8 or C18 stationary phases. C8 often works better for highly hydrophobic peptides, reducing retention times. Finding the right flow rate directly maximizes your single-pass yield. Pushing the flow too fast causes band broadening, which ruins your carefully planned separation. Slowing it down too much destroys your facility's output metrics.

Solvent management also dictates long-term success. Chromatography relies heavily on acetonitrile and trifluoroacetic acid (TFA). These chemicals are toxic and expensive. You need systems designed for efficient recovery and recycling. Capturing these solvents directly controls your operational environmental impact. If you ignore solvent recovery, you face massive hazardous waste disposal challenges.

Furthermore, automation and detailed audit trails are non-negotiable. Ensure your purification skid software is strictly 21 CFR Part 11 compliant. The system must feature robust data logging to support batch release procedures. Without unalterable audit trails, quality assurance teams cannot approve the final product.

Risk mitigation strategies during the buffer exchange step require special attention. Peptides frequently aggregate during concentration steps right before lyophilization. You should maintain strict temperature controls and monitor pH continuously to prevent the semaglutide molecules from tangling together.

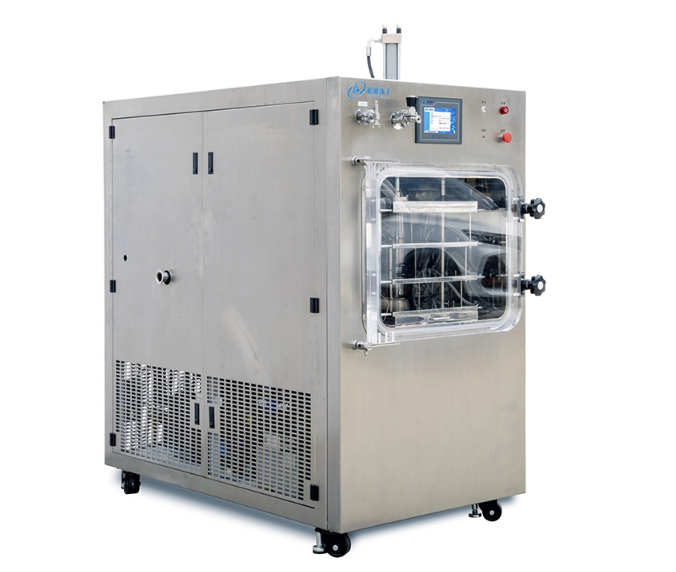

Selecting a Pharmaceutical Lyophilizer for Semaglutide

Once purified, semaglutide requires highly specific freezing and drying profiles based strictly on its critical temperatures. You must identify the glass transition temperature (Tg') and the collapse temperature (Tc) of your exact formulation. If you push the product temperature above the collapse temperature during primary drying, the cake will lose its elegant structure. This physical collapse traps moisture inside, destroying the API's shelf life.

To safely navigate primary drying (sublimation) and secondary drying (desorption), you need robust core equipment capabilities. A standard industrial dryer will simply ruin high-value APIs. You must utilize a purpose-built pharmaceutical lyophilizer engineered for absolute precision.

First, evaluate shelf temperature uniformity. The equipment must maintain strict tolerances, usually around ±1°C across all surfaces. If the shelves distribute heat unevenly, some vials will dry faster than others. This creates unacceptable heterogenous drying across your bulk trays. Some product will emerge perfectly dry, while other sections remain wet and ruined.

Next, focus on the condenser design. The condenser needs exceptionally high trapping capacity to handle the specific vapor loads generated by peptide solvent matrices. Semaglutide formulations sometimes retain trace co-solvents that sublimate aggressively. If the condenser fails to trap this vapor rapidly, system pressure spikes, which triggers devastating product melt-back.

Table: Critical Lyophilization Parameters to Monitor

Vacuum precision rounds out the necessary equipment capabilities. Advanced Pirani gauges and capacitance manometer integration allow operators to monitor the transition from primary to secondary drying accurately. When the Pirani and capacitance readings converge, you know the bulk ice has safely sublimated. This data prevents you from prematurely advancing to secondary drying.

Common Mistake: Many manufacturers rush the secondary drying phase to shorten cycle times. Ramping up the heat too quickly before all residual moisture is cleared results in irreversible peptide aggregation.

Integrating a Biopharmaceutical Freeze Dryer: Scalability and GMP Compliance

Scaling up the lyophilization process introduces distinct thermodynamic realities. Scale-up is rarely a linear journey. A successful recipe developed in a small R&D environment will behave differently in commercial settings. Wall effects, differing heat transfer coefficients, and varied radiation parameters change the equation. Transitioning safely requires you to use a properly engineered biopharmaceutical freeze dryer that allows for precise thermodynamic adjustments.

Compliance-first engineering becomes your primary shield during this scale-up phase. Regulatory bodies scrutinize sterility assurance above almost all else. Your selected equipment must feature integrated Clean-in-Place (CIP) and Sterilize-in-Place (SIP) mechanisms. These automated systems flush and sterilize the internal chamber thoroughly, eliminating the risk of cross-contamination between high-value batches.

Contamination control extends beyond internal cleaning. The necessity of Auto-Loading and Unloading Systems (ALUS) cannot be overstated. Human operators represent the greatest source of particulate and microbial contamination in any cleanroom. By utilizing ALUS, you minimize human intervention, aligning your process perfectly with the latest EU GMP Annex 1 guidelines. Automated push-pull mechanisms handle the fragile vials smoothly, significantly reducing breakage.

You must also conduct a rigorous facility risk assessment before installation. Evaluate the physical footprint carefully. Commercial dryers require massive utility support spaces. You need robust supplies of clean steam and Water for Injection (WFI). Furthermore, the dryer's loading zone must integrate seamlessly with isolator technology or Restricted Access Barrier Systems (RABS). A mismatched interface will compromise your entire cleanroom pressure cascade.

Finally, engineering redundancy protects your investments. A single batch of semaglutide API represents millions of dollars in revenue. Ensure all critical components, such as compressors and vacuum pumps, have immediate fail-safes. If a primary vacuum pump drops offline during peak sublimation, the backup system must engage instantly to prevent a catastrophic pressure rise and subsequent batch loss.

Risk Mitigation and Vendor Shortlisting Framework

Selecting the right equipment partner requires strict shortlisting logic. You must look far beyond standard marketing claims when evaluating manufacturers of a GMP freeze dryer. Prioritize vendors who demonstrate deep engineering expertise rather than just assembling parts. Ask them to explain their pressure vessel design codes and their approach to minimizing refrigerant leaks. A reliable partner will eagerly share their technical design philosophies.

Validation and testing serve as your ultimate proof of concept. You must demand rigorous Factory Acceptance Testing (FAT). Do not rely on water runs alone. Execute the FAT using appropriate surrogate materials that mimic the thermal behavior of your actual peptide matrices. This ensures the condenser and refrigeration systems can handle the realistic thermal load.

Additionally, you should heavily review the vendor's Site Acceptance Testing (SAT) and overall execution history. Request examples of their Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) documentation templates. If their documentation is disorganized or lacks traceability, it will inevitably delay your regulatory filing and slow your time to market.

Best Practice: Always involve your quality assurance team during the vendor selection phase. Having QA review the vendor's software compliance and documentation practices early prevents massive headaches during site integration.

To move forward effectively, organize your next-step actions clearly. Initiate a technical feasibility study with your top two choices. Request a detailed process audit to see how their equipment handles your specific vial sizes and fill volumes. Finally, align the vendor's manufacturing lead times directly with your facility construction or expansion roadmaps. Delays in equipment delivery will severely impact your commercial launch date.

Conclusion

Scaling the downstream manufacturing of semaglutide represents a complex interplay of high-resolution chromatography and precise thermodynamics. Upstream synthesis yields the raw material, but downstream processing creates the final clinical value. You cannot achieve success without mastering impurity removal and moisture control simultaneously.

The equipment decisions you make today will permanently dictate your commercial viability, your compliance status, and your overall batch security for the next decade. Choosing subpar purification skids or inadequate freeze dryers introduces risks that no facility can afford.

• Prioritize continuous solvent recovery to maintain environmental and operational efficiency.

• Lock down critical lyophilization parameters early to avoid structural collapse of the API.

• Mandate automated loading systems to satisfy strict regulatory contamination protocols.

• Engage engineering teams and equipment vendors immediately to model scale-up data before committing to final facility layouts.

FAQ

Q: How long is a typical lyophilization cycle in the semaglutide manufacturing process?

A: Cycle times vary heavily based on the solvent matrix, fill volume, and equipment capacity. However, commercial peptide cycles typically range from 4 to 7 days. Optimization requires empirical thermal analysis, such as Differential Scanning Calorimetry (DSC) and Freeze-Drying Microscopy (FDM), of the specific formulation to safely accelerate the process without risking collapse.

Q: What are the critical cGMP requirements for a semaglutide freeze dryer?

A: Key requirements include 21 CFR Part 11 compliant control systems to ensure data integrity. The equipment also needs verifiable CIP/SIP validation capabilities. Furthermore, automated loading systems are essential to eliminate operator contamination, alongside comprehensive IQ/OQ/PQ documentation to satisfy stringent regulatory audits.

Q: How does scale-up impact semaglutide purification yields?

A: Scale-up often introduces severe edge effects in larger chromatography columns and variations in fluid flow distribution. This leads to band broadening and reduced resolution. You must utilize predictive modeling and maintain constant bed heights during scaling to maintain the greater than 99% purity thresholds achieved at the bench scale.

Q: Can the same biopharmaceutical freeze dryer be used for bulk API and finished vials?

A: While technically possible if the machine features dual-use design capabilities for handling bulk trays and stoppering vials, regulatory realities complicate this. Cleaning validation complexities usually drive manufacturers to dedicate specific equipment exclusively to either bulk API isolation or final drug product fill-finish operations to prevent cross-contamination.
