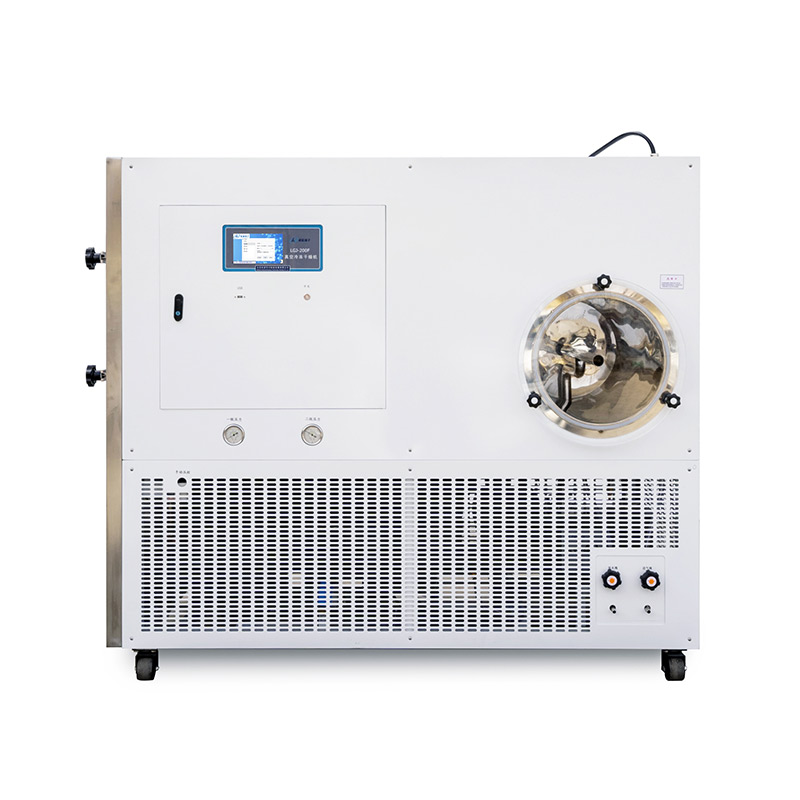

Selecting an optimal lab freeze dryer involves much more than evaluating capacity alone. You are deciding on a core protocol workflow. Choosing the wrong configuration directly impacts sample viability. It increases the risk of cross-contamination and limits long-term scalability. The core distinction between a stoppering and non-stoppering system boils down to how and when samples are sealed. Do you seal them under active vacuum inside the chamber? Or do you process them externally under ambient conditions? This article gives lab managers and formulation scientists a clear, evidence-based evaluation framework. We will help you choose the exact configuration matching your research goals. You will discover how different mechanics affect compliance needs and sample integrity. By understanding these fundamental differences, you can protect your lab's productivity and research outcomes.
Stoppering configurations are mandatory for moisture-sensitive, oxygen-sensitive, or sterile pharmaceutical formulations requiring vacuum-sealing before ambient exposure.
Non-stoppering configurations offer cost efficiency and simplicity for bulk drying, robust samples (e.g., food science, soils), and manifold-flask operations.
Upgrading a non-stoppering unit to a stoppering unit later is rarely viable; this decision dictates your equipment’s long-term utility for scale-up studies.
Stoppering systems introduce higher CAPEX and maintenance overhead (due to pneumatic/hydraulic shelf mechanisms) requiring stricter standard operating procedures (SOPs).
To make an informed purchasing decision, you must first understand the engineering principles behind each system. The mechanics directly dictate your daily laboratory workflow, your maintenance schedule, and your sample processing limitations.
A stoppering freeze dryer relies on controlled internal motion. The mechanism features movable shelves driven by highly calibrated pneumatics or hydraulics. These shelves compress downward at the precise end of the lyophilization cycle.
The outcome is highly controlled and automated. The system presses partially inserted, slotted stoppers fully into the glass vials. It does this while the internal chamber remains completely under vacuum. By completing this action internally, you ensure an inert or vacuum environment stays permanently locked inside the vial before you ever open the chamber doors.
Typical sequence of operation for internal sealing:
Vials are loaded onto the movable shelves with stoppers resting loosely on top.
The freezing phase and active sublimation phases occur normally.
Once secondary drying concludes, the internal hydraulic ram activates.
The shelves compress together, forcing the stoppers firmly into the vial necks.
The chamber vacuum is released, and safely sealed samples are removed.

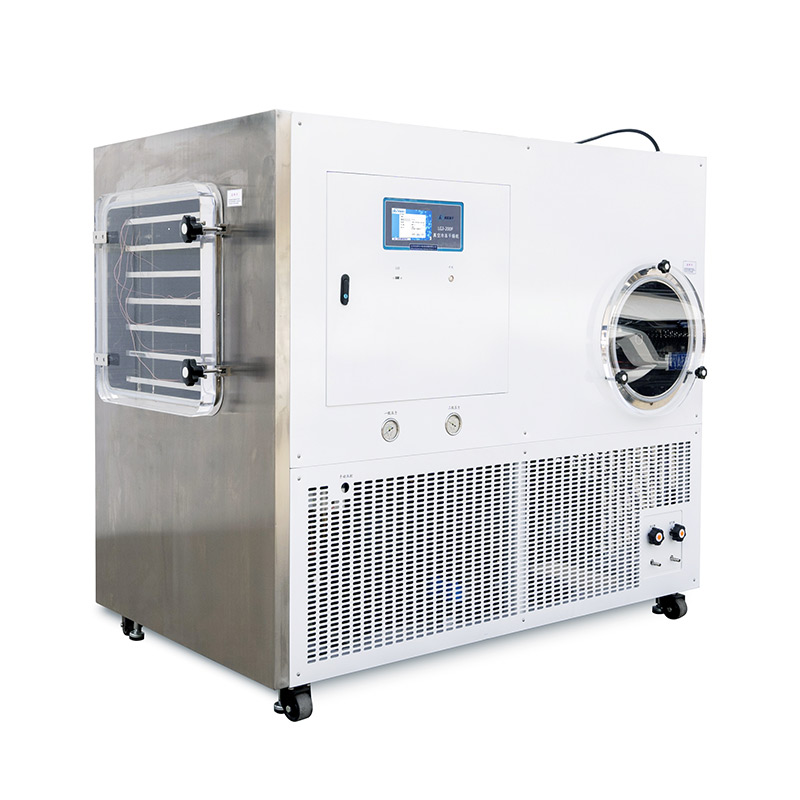

A non stoppering freeze dryer relies on a fixed, static internal structure. The mechanism utilizes static shelves designed strictly to hold bulk trays. Alternatively, these systems frequently use external acrylic manifolds to connect individual glass flasks.
The outcome requires significant manual intervention. Because the shelves cannot move, you must remove all samples from the vacuum environment upon cycle completion. Operators then seal the containers manually under ambient laboratory conditions. Sometimes, facilities backfill the chamber using inert gas. However, you still need rapid external sealing upon opening the unit to prevent ambient air intrusion.
Certain research environments absolutely demand automated internal sealing. Let us look at specific scientific scenarios where investing in movable shelves is essential for success.
Sterility remains critical for biologic formulations, injectable vaccines, and CDMO pipeline projects. Exposing a newly lyophilized cake to ambient laboratory air immediately compromises its sterile state. Internal stoppering eliminates this exposure risk entirely. It keeps your sterile boundary intact by securing the vial before it ever sees room air.
Many advanced formulations act like sponges. They instantly absorb ambient moisture the second you open the chamber doors. This rapid moisture absorption dangerously degrades the glass transition temperature (Tg). It ultimately ruins the product's intended shelf life. Automated shelf compression prevents moisture intrusion by tightly sealing vials while zero humidity exists in the chamber.
Many R&D labs develop protocols specifically intended for pilot or clinical-scale production. If you work in this space, you must mimic commercial GMP freeze-drying environments accurately. Commercial pharmaceutical units almost exclusively use automated internal sealing. Specifying this feature early in your R&D phase ensures your tech transfer data remains valid and reliable.
Oxidation rapidly degrades sensitive active pharmaceutical ingredients (APIs). A movable shelf system allows you to backfill the processing chamber using an inert gas like pure Nitrogen. You then trigger the shelf compression immediately. This specialized process traps the inert gas safely inside the vial, preventing any future oxidation during long-term storage.
Not every laboratory needs the complexity of movable shelves. Static shelf systems offer tremendous advantages for specific applications, providing robust performance without unnecessary complications.
Many labs process APIs, diagnostic reagents, or botanical extractions in large bulk formats. These end products almost always require milling, blending, or further processing after lyophilization. Individual vial sealing becomes completely irrelevant here. Static trays maximize your available drying area, allowing you to process larger volumes efficiently.
Shared academic settings or core university facilities usually handle widely varying sample types daily. They frequently rely on external manifolds accommodating assorted flask sizes simultaneously. Mechanical shelf movement adds absolutely no value in these specific scenarios. A static unit serves diverse user groups reliably, operating continuously without needing specialized vial setups.
Laboratory real estate is always expensive and limited. Static units require significantly less vertical clearance because they lack hydraulic rams. They weigh considerably less. Furthermore, they eliminate the heavy capital expenditure associated with complex automated compression mechanisms. You save both valuable bench space and initial investment capital.
Some biological samples tolerate room air easily without degrading. Environmental testing frequently involves hardy soil or water samples. Food science focuses on stable organic materials and flavor compounds. Brief ambient exposure during manual sealing does not degrade these highly stable profiles. A static system handles these robust tasks perfectly while keeping operations simple.
Choosing an R&D Freeze Dryer requires mapping your daily laboratory operations directly against equipment capabilities. Use the step-by-step framework below to guide your specific configuration decision.
Assess Container Formats: Determine what primary containers hold your samples. If you process 2mL to 50mL glass vials, lean toward automated internal sealing. If you mostly use bulk stainless-steel trays or glass flasks, lean toward a static shelf system.
Calculate Needed Area: Movable mechanisms consume vital internal vertical space. Hydraulic rams and collapsing shelf supports take up room. A static system of identical external dimensions always yields a higher total shelf area. Calculate your batch volume to see if you can afford the space loss.
Define Automation Rules: Review your standard operating procedures carefully. Does your strict SOP require automated cycle completion over weekends? Movable shelves allow fully automated, sealed runs. You do not need immediate human intervention when the weekend cycle ends.
Review Cleanroom Standards: You must assess particulate standards in sensitive cleanroom environments. Mechanical systems naturally generate microscopic friction. Compression mechanisms must be specially designed to avoid generating particulate matter above open, sterile vials. Static shelves have no moving parts, inherently reducing any particulate generation risks.
Freeze Dryer Configuration Decision Matrix
Feature Requirement | Stoppering Configuration | Non-Stoppering Configuration |
|---|---|---|
Primary Sample Container | Glass Vials (2mL to 50mL) | Bulk Trays, Glass Flasks |
Contamination & Moisture Risk | High (Requires internal seal) | Low (Tolerates ambient air) |
Usable Internal Shelf Area | Reduced by moving parts | Maximized for footprint |
End-of-Cycle Automation Level | High (Unattended sealing) | Low (Manual sealing needed) |
Buyers must approach laboratory equipment selection critically. Look well past the glossy marketing spec sheet and consider actual operational realities. Let us explore the common implementation hurdles you might face when deploying these systems.
Movable shelves inherently introduce highly complex mechanisms into your laboratory. These include specialized hydraulic fluids, precision pneumatic seals, and heavy-duty bellows. They represent potential failure points that static shelves simply do not possess. Your lab facility must commit to rigorous preventative maintenance schedules to avoid costly system downtime. You will also need specialized technicians to service the hydraulic lines annually.
Many eager buyers over-specify their equipment during the grant funding phase. Buying a highly complex unit for a lab running only bulk trays is wildly inefficient. It results in wasted capital and unnecessary mechanical complexity. Do not buy movable shelves just because you think you might need them eventually. Map your purchase strictly to a realistic three-year roadmap. If you only plan to process bulk APIs in trays, stick confidently to static shelves.
Laboratory operators require highly specific training to use movable shelf systems correctly. They must prepare the rubber stoppers meticulously before the run even begins. This preparation includes washing, autoclaving, and thoroughly drying the stoppers themselves. Poorly prepared stoppers will introduce residual moisture or biological contaminants directly into the lyophilization chamber. This user error instantly ruins the exact sterile environment you bought the advanced machine to protect.
The choice between a movable shelf system and a static shelf system represents a fundamental fork in the road for any lab facility. This core decision dictates much more than just sample safety. It permanently determines your daily protocol complexity, your automation limits, and your operational maintenance burden.
Choose internal automated sealing mechanisms for sterile, highly moisture-sensitive vials.
Use movable shelves when actively preparing for commercial GMP scale-up tech transfer.
Default confidently to static shelves for bulk APIs and diverse multi-flask manifolds.
Stick to static units for budget-conscious fundamental research involving environmentally robust samples.
Review the standard operating procedure for your absolute most sensitive sample today. Identify the exact container formats you plan to use over the next two years. Contact a technical equipment specialist to map your required vial or tray sizes against available internal chamber dimensions. Making this exact comparison now prevents costly equipment mismatches later.
A: Generally, no. The internal chamber design differs vastly between the two architectures. Movable shelf systems require heavy structural reinforcement to safely handle internal mechanical compression forces. Furthermore, the control software and internal plumbing are fundamentally different. You must specify your required configuration at the initial time of purchase.
A: Yes, many advanced R&D models include external manifold ports on the side of the chamber. This offers a highly versatile hybrid approach for busy labs. However, you pay a significant premium for the internal mechanism. You may not actually use this complex internal feature during routine flask runs.
A: Some benchtop systems use a manual exterior crank mechanism to physically lower shelves. They are notably cheaper than pneumatic or hydraulic systems. However, they require an operator to be physically present at the exact end of the cycle. This heavily reduces overall automation efficiency and eliminates unattended weekend run capabilities.
A: You must use specific "slotted" or "igloo" style lyophilization stoppers. These specialized shapes allow water vapor to escape efficiently during the active sublimation phase. They then seal extremely tightly when the shelves compress them downward, locking in the desired internal environment right before opening the doors.
