Transitioning from R&D to commercial manufacturing is rarely a simple mathematical equation. You cannot just multiply batch sizes and expect identical outcomes. A recipe optimized in a small test unit often behaves differently at scale due to thermodynamic shifts. These physical changes frequently lead to collapsed cakes, altered moisture content, or significantly extended cycle times.
Prematurely purchasing commercial equipment without a rigorous strategy carries massive consequences. It risks severe capital misallocation, costly compliance failures, and entirely lost product batches. You must understand how physical variables shift when moving to larger chambers.
This guide breaks down the engineering, facility, and operational realities of moving from pilot to production. You will learn how to map cycle parameters and identify critical facility constraints. We provide a verifiable framework to ensure a risk-mitigated, seamless operational transition.
Scaling from a pilot freeze dryer to a production freeze dryer requires accounting for changes in heat transfer, vapor flow dynamics, and "edge effects."
A successful freeze dryer scale up relies on empirical pilot data to map cycle parameters, not just matching shelf square footage.
Production equipment introduces exponential increases in utility demands, footprint, and strict cGMP validation requirements (FAT/SAT).
Total Cost of Ownership (TCO) modeling must factor in utility consumption, maintenance downtime, and automation infrastructure alongside the initial capital expenditure.
Understanding the fundamental differences between small-scale testing and large-scale manufacturing is your first step. Engineers design these two environments for entirely different objectives. You cannot evaluate them using the same performance metrics.
A Pilot Freeze Dryer serves primarily as an analytical tool. Its primary role involves recipe development, cycle optimization, and clinical trial manufacturing. You will also use it for small-batch production.
Manufacturers design these units with a heavy focus on high instrumentation and maximum flexibility. They typically feature acrylic doors or large viewing ports. This sample visibility allows scientists to visually monitor the ice front during sublimation. Engineers equip them with precise parameter controls to accurately map the sublimation curve. They utilize numerous thermocouples to track product temperature variations continuously.

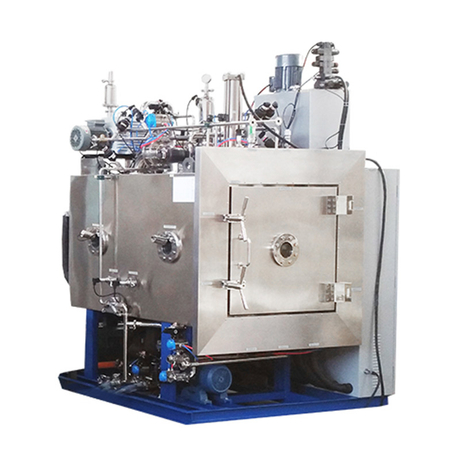

A production freeze dryer exists to generate revenue through volume. Its primary role is high-throughput commercial manufacturing. It must deliver repeatable, validated outcomes batch after batch.
The design focus shifts entirely away from visibility toward efficiency and sterility. Engineers prioritize maximum shelf area. They integrate Automated Loading and Unloading Systems (ALUS) to minimize human intervention. These industrial units incorporate Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems. They also feature robust mechanical redundancy. If a primary compressor fails, a backup must immediately engage to prevent catastrophic batch loss.
Many companies mistakenly believe they can just buy a bigger machine and run the exact same cycle. This assumption creates the "conversion gap." The physical environment of a large stainless steel chamber fundamentally alters how the product freezes and dries. A larger chamber changes the radiation heat profile. It alters vapor flow resistance. It also changes the structural freezing mechanics of the product itself. You must bridge this gap through calculated engineering adjustments.
Equipment Environment Comparison Chart
Feature | Pilot Environment | Production Environment |
|---|---|---|
Primary Function | R&D, cycle optimization, clinical trials | High-throughput commercial manufacturing |
Visibility | High (acrylic doors, viewports) | Low (solid stainless steel, minimal ports) |
Sterility Management | Manual cleaning, external sterilization | Integrated CIP/SIP systems |
Material Handling | Manual loading/unloading | Automated Loading/Unloading Systems (ALUS) |
Redundancy | Minimal (acceptable risk of batch loss) | High (dual compressors, backup power) |

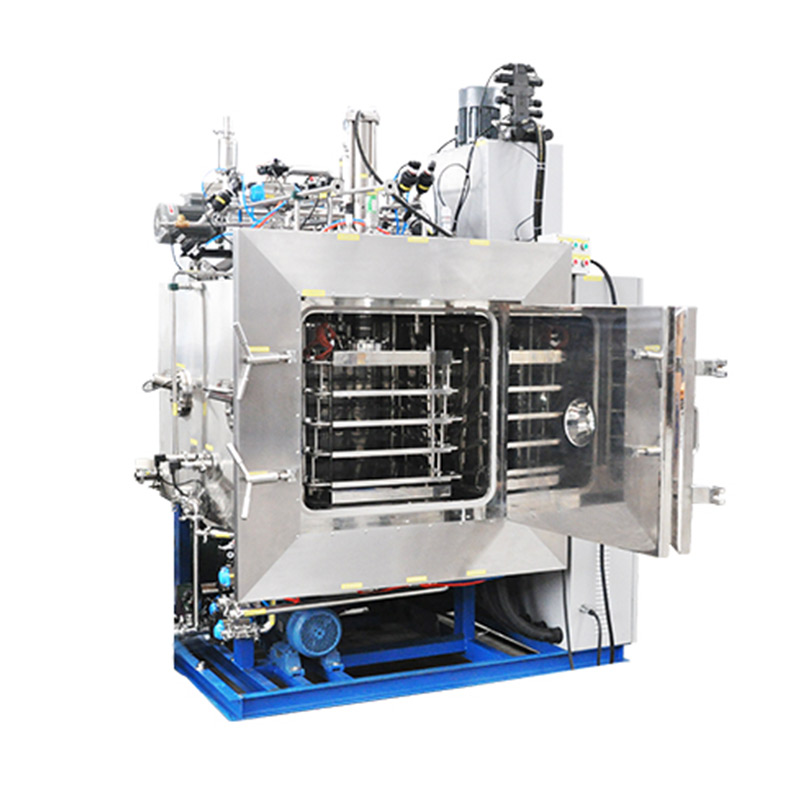

Thermodynamics dictate the success of your final product. When you transition batch sizes, you inevitably alter the physical forces acting upon your vials.
Heat transfer mechanisms change dramatically when chamber size increases. In a small unit, radiant heat from the acrylic door and chamber walls heavily influences the vials positioned on the perimeter. We call this the "edge effect." These perimeter vials receive more energy and dry much faster than vials in the center.
In a massive commercial chamber, the ratio of perimeter vials to center vials drops drastically. The vast majority of the product sits in the dense center of the shelf array. They receive almost no radiant heat from the walls. This discrepancy means a successful 24-hour pilot cycle might inadvertently require 36 hours or more at production scale. If you do not anticipate this during a freeze dryer scale up, your center vials will retain excessive moisture and collapse.
You must also address the physics of sublimation at scale. During primary drying, ice turns directly into gas. A commercial unit generates a massive volume of water vapor. This vapor must travel from the main chamber to the condenser.
This creates a severe risk known as "choked flow." If the sublimation rate exceeds the volumetric capacity of the isolation valve or vapor port, the vapor reaches Mach 1 velocity. At this speed, the pipe physically cannot pass any more gas. Pressure rapidly builds inside the product chamber. This bottleneck stalls the drying process, raises product temperature, and compromises batch integrity. Engineers must calculate precise vapor port diameters to prevent this.
Freezing dynamics also shift. Small machines often achieve rapid, uniform freezing. Small shelves cool down quickly. In contrast, a fully loaded commercial lyophilizer represents a massive thermal load. The cooling process is slower and sometimes uneven across different shelf tiers.
This alters the ice crystal structure. Slower freezing generally produces larger ice crystals. Larger crystals leave wider pores when they sublimate, which actually speeds up primary drying. However, uneven freezing means some vials dry faster than others. You must map these variations to ensure uniform residual moisture across the entire batch.
Moving to commercial scale is not just an equipment upgrade. It demands a comprehensive facility overhaul. Your infrastructure must support massive new demands.
Commercial units require significant facility reinforcement. They are incredibly heavy. You must calculate floor load-bearing capacities meticulously. Furthermore, you will transition from a self-contained unit to a split-architecture system.
In a split-architecture design, only the sterile product chamber sits inside the cleanroom. The massive condenser, refrigeration skids, and vacuum pumps reside in an adjacent technical space. This setup saves expensive cleanroom real estate. However, it requires complex wall penetrations and specialized sealing flanges.
Prepare for an exponential jump in utility requirements. Small units often plug into standard laboratory outlets. Commercial systems demand heavy industrial infrastructure.
Electrical Power: You will need dedicated 3-phase industrial power to drive massive compressors and vacuum pumps.
Cooling Infrastructure: The refrigeration systems reject massive amounts of heat. You must install high-capacity chillers or external cooling towers.
Compressed Air: Pneumatic valves and automated mechanisms require clean, dry compressed air.
Clean Steam: If you utilize SIP processes, you need a dedicated pure steam generator to sterilize the chamber between batches.
Operational realities change as volume increases. Evaluate the shift from manual loading to automated vial and tray handling. Human operators represent the highest risk of contamination in any cleanroom.
Implementing ALUS carries a higher upfront cost. However, it drastically reduces contamination risk. It also reduces your dependency on highly trained manual labor. Over time, fewer rejected batches and lower labor costs provide a powerful offset to the initial capital expenditure.
Regulatory agencies scrutinize commercial manufacturing much more rigorously than R&D activities. Your equipment and software must meet strict compliance standards.
Transitioning to commercial scale requires enterprise-grade software. You can no longer rely on simple data loggers. The FDA and other regulatory bodies require strict adherence to cGMP guidelines and 21 CFR Part 11 regulations.
Your control system must feature secure audit trails. Every parameter change must be recorded and attributed to a specific user. Electronic signatures are mandatory for batch approvals. The system must automatically generate secure, unalterable batch reports to prove the cycle stayed within validated parameters.
Procuring commercial equipment involves a rigorous testing pipeline. You must outline the Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) processes early.
During the FAT, you visit the manufacturer's facility to test the equipment before shipment. You verify it meets all design specifications. Once delivered, the SAT ensures it survived transport and interfaces correctly with your facility utilities. Commercial scale-up then requires rigorous Execution of Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) before you can sell a single vial.
How do you actually initiate this transition? You must leverage your R&D data to define your commercial requirements. Follow these exact steps to ensure a data-driven equipment purchase.
Finalize the Critical Quality Attributes (CQAs): Do not guess your limits. Define the absolute thermal limits of your product using empirical data. Identify the exact collapse temperature. Determine the acceptable residual moisture percentage. These CQAs dictate the necessary cooling capacity and vacuum depth of your new equipment.
Calculate True Throughput Requirements: Move beyond simple "vials per batch" metrics. You must calculate the actual annual required output. Take the theoretical maximum batches and subtract projected maintenance downtime. Subtract the time required for defrost cycles. Most importantly, subtract the lengthy turnaround times required for CIP and SIP processes. This reveals your true operational throughput.
Map the Utility Constraints: Cross-reference the required equipment specifications with your facility limits. Do this before engaging vendors. Check your current maximum HVAC cooling capacity. Verify your electrical panel limits. If your facility cannot supply enough chilled water, you must either upgrade the facility or restrict the equipment size.
Engage Vendors with Empirical Data: Present shortlisted manufacturers with exact cycle logs. Do not just hand them desired batch sizes. Provide them with shelf temperature profiles, chamber pressure logs, and product temperature curves. This empirical data ensures their engineers size the condenser and vapor port appropriately to prevent choked flow and ensure uniform drying.
Executing a successful freeze dryer scale up is fundamentally an exercise in risk management and thermodynamic alignment. It is never just a simple procurement task. You are altering the physical environment of your product, and you must engineer solutions to compensate for those changes.
Robust pilot data serves as your ultimate insurance policy against commercial failure. When you understand your edge effects, vapor flow limits, and freezing dynamics, you can confidently dictate specifications to equipment manufacturers.
Next Action: Begin by compiling your existing cycle data, product CQAs, and facility utility schematics. Use this compiled data package as your foundational document when requesting formal engineering evaluations from commercial equipment manufacturers.
A: Cycle times increase at scale primarily due to mass heat transfer differences. Large chambers lack the significant "edge effects" of small units, meaning center vials receive less radiant heat. Additionally, the massive vapor load can strain condenser capacity, requiring slower sublimation rates to prevent choked flow.
A: While technically possible, it is rarely advisable for the long term. Small units generally lack integrated CIP/SIP systems and automation capabilities. This manual operation hurts long-term ROI, increases contamination risks, and heavily complicates cGMP compliance and validation efforts.
A: You should expect a realistic lead time of 9 to 18 months. This timeline depends heavily on chamber size, specific customization requirements, and the complexity of the FAT/SAT protocols. Early facility planning and vendor engagement are absolutely critical.
A: You calculate it by determining the total batch moisture mass (the volume of water in your fully loaded product) and adding a safety buffer. Engineers typically add a 20-30% buffer to account for peak sublimation rates during the most intense phases of primary drying.
